Low voltage outdoor lighting installation is defined as the process of reducing standard 120V household current to 12V using a transformer, making landscape lighting safe, affordable, and well within reach for most homeowners. This approach costs 30–50% less than traditional line-voltage systems because it requires less restrictive wiring and minimal trenching. Arkansas homeowners use it to illuminate pathways, patios, garden beds, and tree canopies without the risk of high-voltage shock. Villageprecisionpros has completed over 1,750 outdoor projects across Central Arkansas, and low voltage lighting ranks among the most requested upgrades we see every season.
What tools and materials do you need for low voltage outdoor lighting installation?
Gathering the right equipment before you start saves time and prevents mid-project trips to the hardware store. The core tools are straightforward: a flat-blade shovel, wire strippers, a Phillips screwdriver, a tape measure, and a voltage tester. You will also want a rubber mallet for driving stake-mounted fixtures into Arkansas clay soil, which compacts harder than most homeowners expect.
The materials list is equally direct:
- Low voltage transformer: Sized to your total fixture wattage plus 20–30% overhead
- Landscape lighting fixtures: Path lights, spotlights, or well lights rated for outdoor use
- Landscape wire: 12-gauge or 14-gauge, direct-burial rated
- Waterproof connectors: Gel-filled or locking types rated for outdoor burial
- Cable staples or ground stakes: To secure wire before burial
- GFCI outdoor outlet: Required for transformer power connection
Wire gauge matters more than most beginners realize. Use 14-gauge wire for short runs under 100 feet. Use 12-gauge wire for any run exceeding 100 feet to maintain consistent brightness across all fixtures. Thinner wire on long runs causes voltage drop, which dims lights at the far end of the circuit.
Pro Tip: Buy fixtures and connectors rated for direct burial and wet locations. Weather-rated components last years longer in Arkansas’s humid summers and freeze-thaw winters than standard indoor-rated parts.
| Component | Recommended spec |
|---|---|
| Wire gauge (short runs) | 14-gauge, direct-burial |
| Wire gauge (long runs) | 12-gauge, direct-burial |
| Connector type | Waterproof, gel-filled |
| Outlet type | GFCI protected |
| Transformer sizing | Total wattage + 20–30% |
How do you plan your layout and size your transformer correctly?
Good planning separates a polished result from a frustrating one. Walk your property at dusk before buying a single fixture. Dusk reveals exactly where shadows fall, which trees deserve uplighting, and where pathway edges go dark. Mark those spots with small flags or chalk.
For path lights, space fixtures 6–10 feet apart to produce even coverage without the “runway effect,” where lights line up so uniformly they look like an airport strip. Staggering fixtures slightly on alternating sides of a path looks more natural and spreads light more evenly. For outdoor lighting ideas specific to Arkansas landscapes, layering path lights with accent spotlights on trees or garden features creates depth that flat, uniform lighting never achieves.
Transformer sizing follows a simple formula:
- List every fixture and its wattage (found on the package or spec sheet).
- Add all wattages together for your total load.
- Multiply that total by 1.25 to get your minimum transformer size.
Industry standard guidance requires transformer capacity at 120–130% of total fixture wattage. That buffer prevents overload and leaves room to add fixtures later without buying a new transformer. A 150-watt transformer running 100 watts of fixtures, for example, handles future additions comfortably.
Pro Tip: Sketch your layout on paper before buying wire. Measure actual ground distances, not straight-line distances. Beds, trees, and hardscape features add significant cable length.
Wiring layout also affects brightness. A daisy-chain run, where fixtures connect one after another along a single wire, causes the last fixture to receive noticeably less voltage than the first. A hub-and-spoke wiring layout runs separate, shorter cables from the transformer to clusters of fixtures. This produces more even brightness across the entire system and makes troubleshooting far simpler.

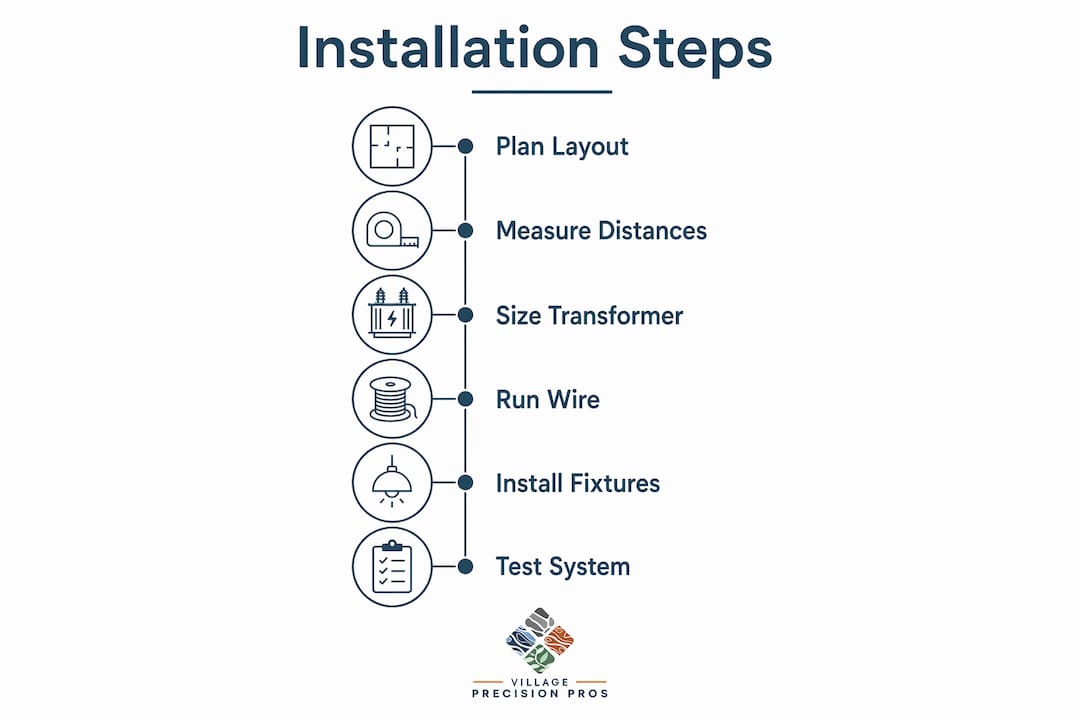

Step-by-step guide to installing your landscape lighting system
Follow these steps in order. Skipping the testing phase is the single most common mistake we see on DIY projects.
-
Place fixtures without staking them. Lay all fixtures in their planned positions across the yard. Connect them temporarily to the wire and power on the transformer. This dry run lets you see the actual light pattern before committing to any burial.
-
Test all connections before trenching. Test all fixtures while temporarily connected to the transformer. Catching a faulty fixture or a bad connector now costs five minutes. Catching it after burial costs an hour of digging.
-
Run the main wire from the transformer outward. Leave 12–18 inches of slack at each fixture connection point. Slack gives you room to adjust fixture position later without pulling the wire tight or stressing the connector.
-
Connect fixtures using waterproof connectors. Indoor-rated wire nuts cause corrosion and eventual failure in outdoor conditions. Use gel-filled, locking connectors designed for direct burial. Twist the connector firmly until it clicks or seats fully.
-
Bury the wire 2–6 inches deep. Burying wire at this depth protects it from lawn mowers and foot traffic while keeping it accessible for future repairs. Going deeper than 6 inches makes maintenance harder without adding meaningful protection.
-
Mount the transformer near a GFCI outlet. The transformer should hang on an exterior wall or post within reach of a GFCI-protected outdoor outlet. Mount it at least 12 inches above ground to keep it clear of standing water after heavy Arkansas rain.
-
Set the timer or photocell. Most transformers include a built-in timer or photocell sensor. Set the timer to match your preferred on and off times, or use the photocell to trigger automatically at dusk. This extends bulb life and reduces energy use.
-
Perform a final test and adjust fixture angles. Power the system on after burial and walk the property. Adjust spotlight angles and path light positions as needed. Fine-tuning at this stage costs nothing and makes a visible difference in the finished result.
For a complete installation checklist covering every phase from layout to final testing, a structured reference keeps the process organized and prevents skipped steps.
What are the most common mistakes in low voltage lighting installations?
Most problems trace back to three root causes: undersized transformers, wrong connectors, and shallow or inconsistent wire burial.
- Undersized transformer: A transformer running at or above its rated capacity dims lights and shortens its own lifespan. Inadequate transformer capacity is a top cause of flickering or dim outdoor lights. Size up, not down.
- Non-waterproof connectors: Standard wire nuts absorb moisture, corrode, and eventually short out. Improper electrical connections are the leading cause of long-term system failure. Replace any indoor-rated connector you find.
- Incorrect burial depth: Wire left on the surface gets cut by edgers and creates trip hazards. Wire buried more than 6 inches becomes difficult to access for repairs. Aim for 3–4 inches as a practical middle ground for most Arkansas yards.
- Daisy-chain wiring on long runs: Voltage drops progressively along a single long run. Fixtures at the far end appear noticeably dimmer. Switch to a hub-and-spoke layout or shorten individual runs.
Voltage drop is invisible until you power the system on at night. A fixture that measures 10.5 volts instead of 12 volts produces noticeably less light. Check voltage at the last fixture on any run using a simple multimeter. If it reads below 10.8 volts, upgrade the wire gauge or restructure the run.
For troubleshooting dim lights, check connections first, then measure voltage at the fixture. A fixture placement guide also helps identify whether the issue is wiring or positioning. Inspect all connections and bulbs at least once per season to catch corrosion before it causes a full circuit failure.
Key Takeaways
Proper transformer sizing, waterproof connectors, and a hub-and-spoke wiring layout are the three factors that determine whether a low voltage lighting system performs reliably for years or fails within a single season.
| Point | Details |
|---|---|
| Size your transformer correctly | Set capacity at 120–130% of total fixture wattage to prevent overload and allow future expansion. |
| Use waterproof connectors only | Gel-filled, locking connectors prevent corrosion and are the most common failure point to get right. |
| Test before you bury | Power on all fixtures before trenching to catch faults early and avoid unnecessary digging. |
| Bury wire 2–6 inches deep | This depth protects wire from damage while keeping it accessible for maintenance and repairs. |
| Plan for a hub-and-spoke layout | Shorter runs from the transformer produce even brightness and simplify future troubleshooting. |
What I’ve learned after years of watching these systems succeed and fail
Most homeowners focus on fixture style when they should focus on wire routing. A beautiful fixture on a poorly planned circuit looks dim and uneven within a season. The wiring layout is the foundation. Get that right, and the fixtures take care of themselves.
The other thing I tell every homeowner: plan for growth. Buy a transformer with at least 30% more capacity than your current fixture load. Arkansas properties tend to grow. You add a garden bed, a pergola, a new pathway. A transformer with headroom absorbs those additions without a full system redesign.
Layered lighting beats uniform brightness every time. Professional landscape designers use subtle, layered lighting with glare shields rather than flooding a yard with even coverage. One uplight on a mature oak, two path lights along the front walk, and a pair of well lights in the flower bed creates far more visual interest than eight identical path lights in a straight row.
Finally, do not underestimate the safety value. Twelve volts will not harm a person or a pet. That peace of mind matters, especially for families with children playing outside after dark. The energy savings are real too. LED low voltage fixtures draw a fraction of what line-voltage systems consume, and the difference shows up on your monthly bill.
— Ty
How Villageprecisionpros can help with your outdoor lighting project
Villageprecisionpros works with Arkansas homeowners across Central Arkansas to design and install custom landscape lighting plans that fit the property, the budget, and the homeowner’s vision. Our crews handle everything from transformer placement and wire routing to fixture positioning and final testing.
We integrate lighting with irrigation and hardscape features so every system works together rather than around each other. Whether you want a simple pathway setup or a full property lighting design, we bring the same craftsmanship to every project. With over 1,750 completed projects in Arkansas, Villageprecisionpros has the experience to get your outdoor space right the first time. Schedule a consultation and let us put together a plan built around your yard, not a generic template.
FAQ
What voltage does a low voltage outdoor lighting system use?
Low voltage outdoor lighting systems operate at 12 volts, reduced from standard 120V household current by a transformer. This makes the system safe to handle and install without an electrician’s license in most jurisdictions.
How do I size a transformer for my lighting system?
Add the wattage of all fixtures together, then multiply by 1.25 to get your minimum transformer size. Industry standard guidance sets transformer capacity at 120–130% of total fixture wattage to prevent overload and support future additions.
How deep should I bury low voltage landscape wire?
Bury wire 2–6 inches deep to protect it from lawn tools and foot traffic while keeping it accessible for repairs. A depth of 3–4 inches works well for most Arkansas yards with standard soil conditions.
Why are my landscape lights dim at the far end of the run?
Dim lights at the end of a circuit indicate voltage drop caused by wire resistance over distance. Switch to 12-gauge wire for runs over 100 feet, or restructure your wiring to a hub-and-spoke layout with shorter individual runs.
Do I need a GFCI outlet for my outdoor lighting transformer?
A GFCI-protected outdoor outlet is required for transformer installation. GFCI outlets cut power instantly if moisture causes a fault, protecting both the transformer and anyone nearby from electrical hazard.
